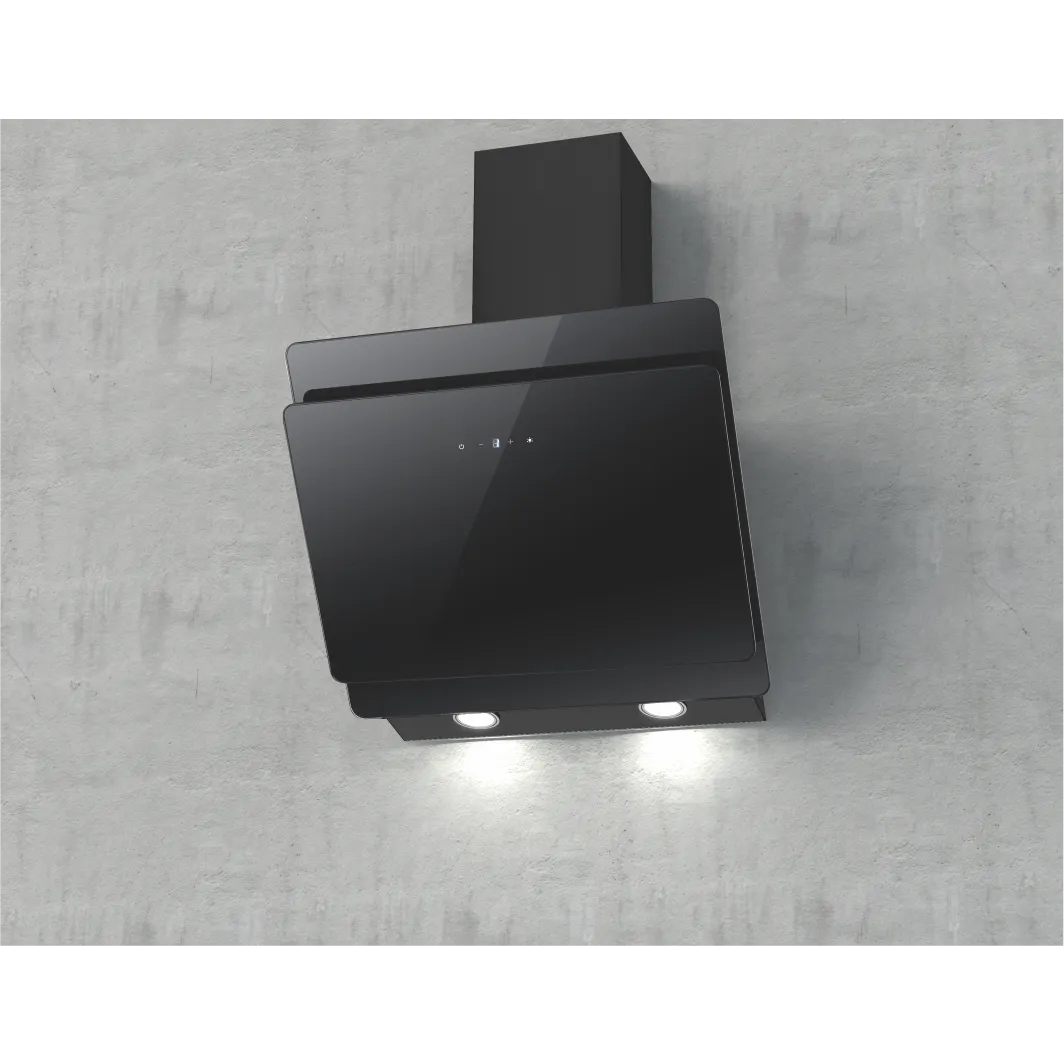

90cm High End Touch Control Angled Hood 706

Multiple Extraction rate choose with low noise sound pressure motor Energy Efficiency Class from D to A++ 3 venting speeds, Touch control with 1 digiti display. Two Ventilation Modes Optional: recycling inside with charcoal filter…
Category:

Performance
Angled hood is a perfect choice for those with limited headroom. Touch control with 1 digiti display is eligent and easy to operate Black glass 5mm+Anodize Al. with high class feel and easy to clean Used with washable aluminium grease filters

Operating Mode
With flexible choice between recirculation or direct air exhausting. 1.Recirculating mode: Charcoal filters are necessary if your area is not allowed to install outdoor exhaust pipe.Replaced every 2 to 4 months depending on using frequency.2. Direct air exhausting mode:Used as a ducting vent cooker hood with a duct pipe 150mm in diameter.

Energy-Saving Light
Two 1.5W LED light mounted directly below the range cooker and see better when cooking and can be as light in the dark.

Material: Black painted body, Black tempered glass

Airflow: 750 m³/h

Motor Type: 1x210W

Control Type: Touch control

Level of Speed: 3

Lighting: 2×1.5W LED lamp

Filter Type: 1pcs Aluminum filter

Chimney extension: 400+400mm

Air Outlet: 150mm

Loading QTY(20/40/40HQ): 136/288/360 (60cm) 96/192/240 (90cm)



Option Features:

Color: Black / White painted body

Switch: LCD Touch control , Remote control

Motor: 550/1000m3/h DC 650m3/h

Filter function: Charcoal filter/VC filter
